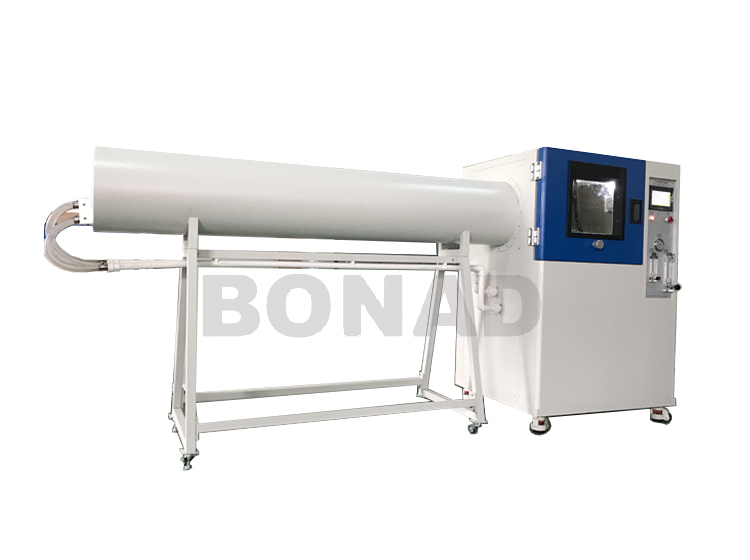

BND-IPX56BS IPX5 IPX6 Strong water spray test chamber

Model	IPX56BS-500L	IPX56BS-700L	IPX56BS-1400L	IPX56BS-1700L	IPX56BS-1900L
Inner size(mm)W*D*H	800*800*800	900*900*900	1180*1180*1000	1180*1180*1180	1180*1180*1300
Outer size(mm)W*D*H	4000*1050*1600	1150*1150*1700	4000*1450*1800	4000*1450*1850	4000*1450*2000
Turntable diameter(mm)	600	600	800	￠800	800
IPX5 diameter(mm)	6.3
IPX6 diameter(mm)	12.5
IPX5 flow(L/min)	12.5±0.625
IPX6 flow(L/min)	100±5L/min
Power(Mpa)	According to the provisions of water flow regulation
spray water distance	2.5M
Pump	stainless steel multi-stage pump
Spray nozzle fixing method	machinery fixation
Water pipe materials	Stainless steel+PPR
Inner box materials	SUS304#stainless steel
Sample table materials	SUS304#stainless steel plate
protector	Electric leakage, water-break, cutting-out
Power supply(V)	380V
Power(KW)	3
Standard	IEC60529:1989+A1:1999、GB4208、GB7000.（IPX5、IPX6)
