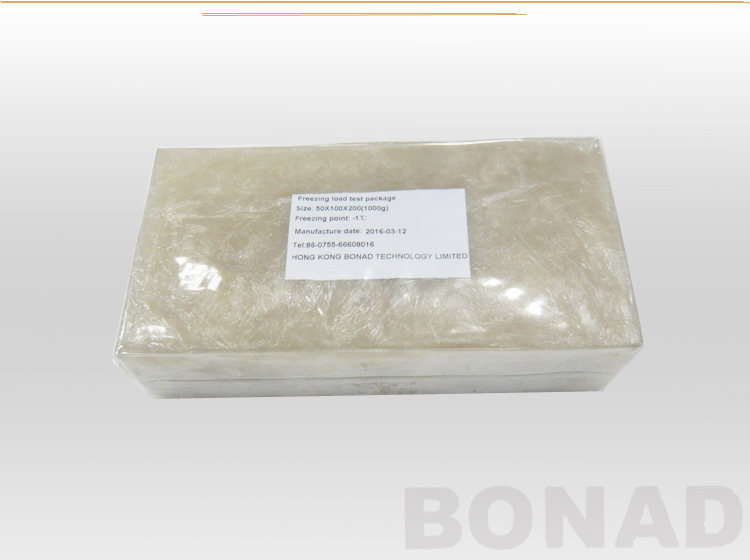

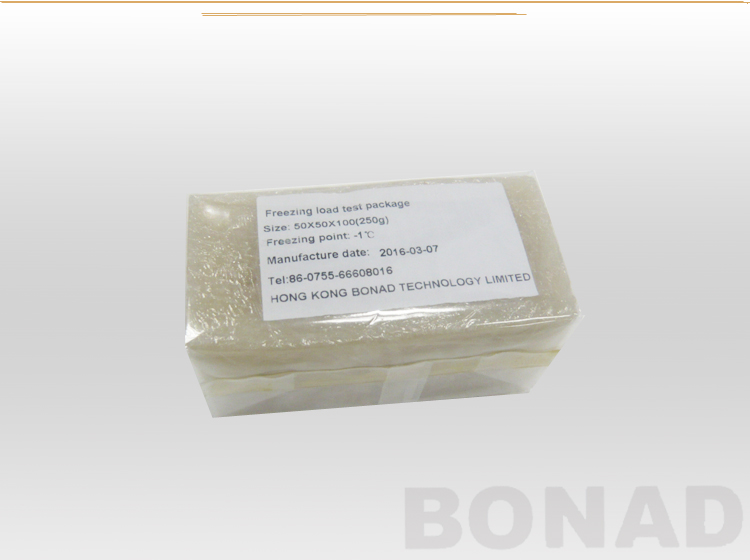

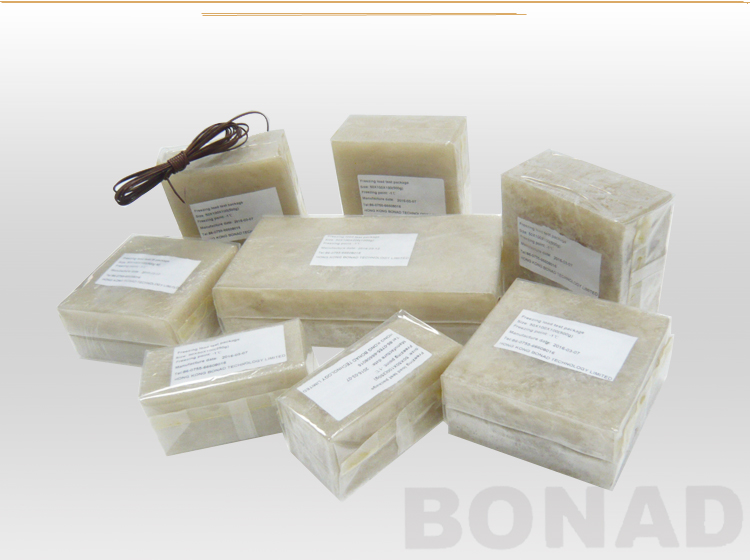

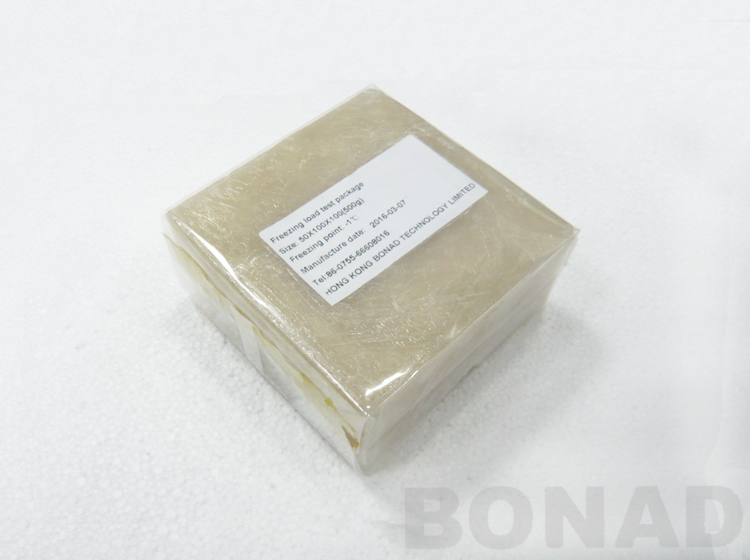

ISO 15502  Freezing point -1°C/-5°C freezing load test package
Name:ISO 15502 Freezing point -1°C/-5°C freezing load test package
Type:BND-RT01/RT02/RT03/RT04
Manufacturer:we can supply the ISO 15502/AS1731.4-2003/AHAMHRF-1 2007/AS72-2005 this standard freezing load test packages
Product Description:



ISO 15502  Freezing point -1°C/-5°C freezing load test package



The freezing load test package is made according to GB/T8059.2 GB/T8059.4, and we can also make the package in different standard according to different requirement.

Test package is placed in the frozen food storage compartment and ice greenhouse performance test, or in a freezer to test the freezing capability test, to simulate the load capacity of frozen food.

1. The freezing point of the test package is -1℃ (Its thermal performance is equivalent to lean beef)

2. Packaging material is a thin layer of plastic, or with appropriate materials which can do medium vapor exchange with the environment, immediately seal the packaging material after filling,

3. When measured in ice greenhouse, must use the  -5℃ test package.

4. You cannot use in test of testing freezing capacity and load temperature rise time.

5. M package means the 500g test package, it equipped with a thermocouple in the geometric center to measure the temperature. The thermocouple contact the package directly.



1.  BND-RT01 International and Euro standard test package (ISO 15502/GB8059.1-4)

-1 ℃ and -5℃ two type

Size (mm)

Weight (g)

Size Tolerance

Weight Tolerance

25 × 50 × 100

125

When the Side length size is 25mm to 50mm, tolerance is allowed to be ±

2mm. 100mm to 200mm, ±

3mm.

±2%

50 × 50 × 100

250

±2%

25 × 100 × 100

250

±2%

25 × 100 × 200

500

±2%

50 × 100× 100

500

±2%

50 × 100 × 200

1000

±2%


BND-RT01M Freezing load test  M package with thermocouple wire or embedded copper pipe,  -1℃ / -5℃


Size (mm)

Weight (g)

Size Tolerance

Weight Tolerance

50 × 100 × 100

500

±2mm

±2%


2. BND-RT02  Australia Standard test package AS1731.4-2003


Size (mm)

Density (Kg/m3)

Size Tolerance

Weight Tolerance

25 × 50 × 100

480±80

When the Side length size is 25mm to 50mm, tolerance is allowed to be ±

2mm. 100mm to 200mm, ±

4mm.

±2%

25 × 100 × 100

480±80

±2%

50 × 100× 100

480±80

±2%

37.5 × 100× 200

480±80

±2%

50 × 100 × 200

480±80

±2%


BND-RT02M Freezing load test M package with thermocouple,  according toGB8059.1


Size (mm)

Density (Kg/m3)

Size Tolerance

Weight Tolerance

50 × 100 × 100

480±80

±2mm

±2%

(Quality is estimated by the density and volume size)


3. BND-RT04 Sawdust test package AHAMHRF-1 2007/ SASO 2664-2007


mainly made of hard wood sawdust


BND-RT04M  Freezing load test M package  with thermocouple or embedded copper pipe



Size (mm)

Density Tolerance (Kg/m3)

Weight Tolerance (g)

130±6 × 100±4 × 40±2

560±80

290±40


4. BND-RT03 North America Commercial use test package AS72-2005


Size (mm)

Size Tolerance

Volume

50 × 100× 100

±2mm

473ml


BND-RT03M LOAD test M package  with thermocouple wire
